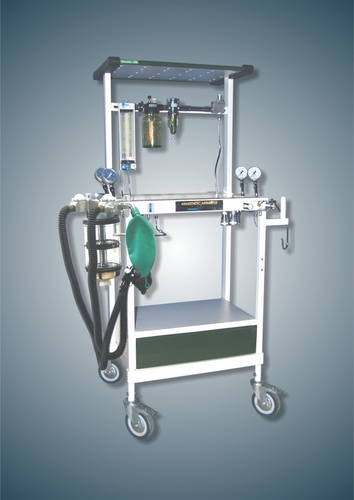

Anesthesia workstation ADONIS-201A

Anesthesia workstation ADONIS-201A
Anesthesia workstation ADONIS-201A
Send Inquiry
Product Code : 07
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Piece/Pieces
  • Price Or Price Range
  • INR
Product Description

Integrated breathing circuit with apl valve,excellent tightness.

  • Replacing drive bellow is not required when operating adult/pediatric anesthesia.

  • Applied with 1 high-precision vaporizers,(with optional to selectatec).

  • 7 inch screen with no dead space.

  • Real “time detection for loops,paw,bpm,vt and compliance.

  • Comprehensive monitoring capabilities include ventilation parameters monitoring ,preset parameters,alarm indication and breathing wave-form monitoring.

  • Acgo available to connect with t?BAIN Circuit for open operation.

  • Yoke system with up to 3 back up cylinders(a type with 11l size).

Technique specifications

  • Physical specifications

  • Dimensions:70x85x140cm.

  • Weight:50kg.

  • casters:front wheels with lock.

  • screen:lcd.

  • Display:7inch.

  • Display graphics:waveforms of p-t,f-t.

  • monitoring:vt,mv,bpm,paw,inspiratory platform,fio2

Working specifications

  • Power:ac 220v+10%,50hz+2%.
  • output pressure:0.4+0.1mpa.
  • current:500ma max
Ventilator specifications
  • Modes of ventilation
  • Ippv:intermittent positive pressure ventilation.
  • simv:synchronized intermittent mandatory ventilation.-Manual:manual.
  • sippv(a/c):synchronized intermittent positive pressure ventilation.
  • stand-by:stand-by

System standard

  • Hypoxic guard system:n2o cut-off valve,02â concentration>25%.
  • safety valve:<12.5kpa.-Fresh gas compensation:25-75l/min.
  • flowmeter:cascade,0-10l/min.
  • volume of co2 absorber:2l.
  • flow meter:4 tubes ,cascade 0.1-15l/min 02 0.1-15l/min n20.
  • vaporizer:1 selectetac,maximum 2 mounts(isoflurane/enflurane/sevoflurane/halothane.
  • Ventilator parameter
  • Working type:electronically controlled,pneumatic driven.
  • tidal volume range :40-1500ml.
  • pressure range:5-80 mbar.
  • rispriation rate range:1-99bpm(1-40bpm under simv).
  • i:e range:4:1-1:8.
  • ptrigger range:-20-20cmh2o.
  • minute volume range:>18l/min.
  • sigh range:0-5/100
Alarm limits
  • Audio/visual:no tidal volume,mv,paw,fi02â limitation 02,air failure,ac power failure,battery low.
  • Pipeline suppiy
  • Gas configuration:02,n2o.-Pipeline input range:280-600kpa
Battery power
  • Battery type:lead-acid 12v,4ah.
  • run-time:typical 30mins+,up to 2 hrs
  • Pre-setting functions
  • Language:english.-Calibration:automatic
Applications
  • Patient range:audlt/peadiatric
  • Optional
  • Agess,suction unit,auxiliary o2â flowmeter,vaporizer(selectates)





Trade Information
  • Supply Ability
  • As per demand Per Day
  • Delivery Time
  • 6-7 Days
  • Sample Available
  • No
  • Sample Policy
  • Contact us for information regarding our sample policy
  • Packaging Details
  • As per required
  • Main Domestic Market
  • All India
  • Certifications
  • ISO-9001-2015 & CE
